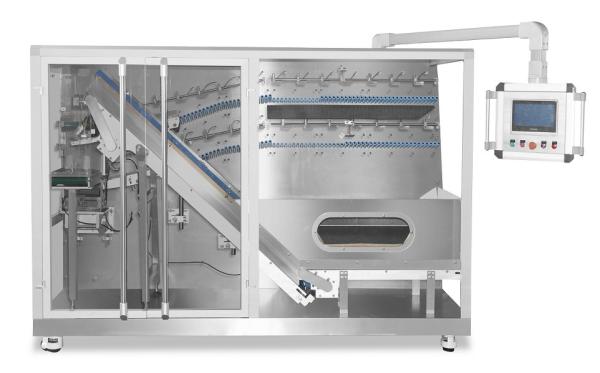

High speed pouch settle machine pouch sorting machine 120 bags collected machine

RT-hx600 high speed disordered material counting machine is composed of silo (with conveying function at the bottom), double climbing conveying, double horizontal conveying, servo drive separation control system, material detection system, simple structure, convenient maintenance. Feeding can be manually poured into the material bin, but also through the way of conveying the material to the inside of the bin, save manpower, improve efficiency.

Machine dimensions (standard) : 2700x1300x2000(mm) (length x width x height)
2, machine weight: 1000Kg
3, input voltage: three-phase 220V
4, power supply: 11KW
5, power cable cross-sectional area: >6mm²
6, frequency: 50Hz
7, working environment temperature: -10~55°C
8, size range: length: ≤200mm width: ≤120mm
9, feeding speed: up to 600 bags/min (related to material size and characteristics)

While ROTY team member arrives at the site for a complete and final installation, two days training course will be provide to the customer for operation and maintenance procedure. The initial installation is provided within 5 working days excluding travel days. The actual installation days may vary, based on different machine mode and packing lines. Each day of working hour consist at 8 working hours..

After Service

ROTY provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.

Training

We will provide free training to your technician free of charge at our factory site in Shanghai, China. The total training period would be 2 working days. All travel and related expensed would be at the purchaser’s expense.

Shanghai rutian package equipment co.,ltd have rich experience in the production of bag packing equipment and got more than 28 patents of bag packing machine in china.We cooperated with China's largest dairy company-YILI GROUP and China's largest instant powder beverage company-INFINIT, We not only provide high quality equipment, but also perfect after-sales service system to support the production of customers: equipment online detection system, remote guidance to adjust equipment parameters.)

 The company's main business: flexible intelligent packaging equipment and perfect solutions for the production of the back section of the factory, the company serves nearly a thousand domestic and foreign customers in various industries, Rutian is committed to become the world's packaging equipment leader, serving global customers, and comprehensively cultivate social responsibility!

Hi-tech enterprise, intellectual property management system certification, science and technology innovation competition prize
