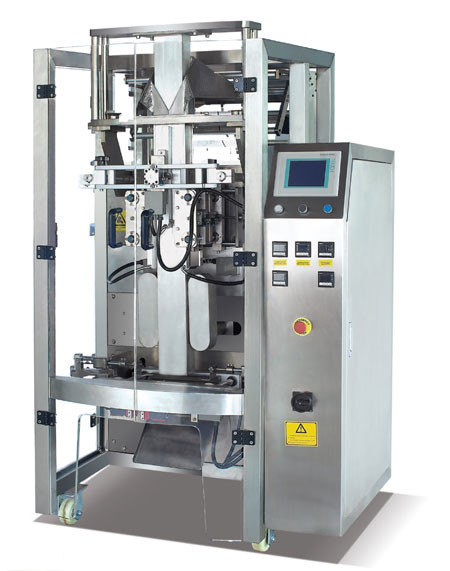

Automatic Vertical Pouch Cashew Nuts Filling And Packing Machine
PICTURE FOR REFERENCE
Packing specification
Rtl-520:
2.1 Multilayer composite film of packaging materials
2.2 Packaging products can be packaged with different cutting
devices
2.3 Packaging Speed RTL-520 Packaging speed: 30-60 packs/min
2.4 Packing accuracy ±1.5%
The characteristics :
High quality packaging and minimal product loss,
Perfect packaging appearance.
Easy upgrade of main machine
Good working environment.
Details of features:
. Equipped with safety protection, in line with the requirements of
enterprise safety management.
2. Intelligent temperature controller is adopted to ensure accurate
temperature control, beautiful and smooth sealing.
3. PLC system, pneumatic control system and super large display
touch screen constitute the driving control core, which maximizes
the control accuracy, reliability and intelligence of the whole
machine.
4. The machine and metering configuration can automatically
complete the metering, feeding, bag filling, date printing, gas
(exhaust), finished product delivery of all the packaging process,
and automatically complete the counting.
5. The touch screen can store a variety of packaging process
parameters of different products, which can be used at any time
when changing products without resetting.
6. There is a fault display system to help troubleshoot the fault
in time.
7. It can be made into pillow bags and punch hole bags according to
customers' needs.
8. The packaging material loss is low. The machine USES
prefabricated packaging bags with perfect packaging pattern and
good sealing quality, thus improving the product grade.
Technical parameters:
Packing speed: 30-60bag/min
Bag-making size :(L)80-320mm (W)80-220mm
Pillow bag, vertical bag
Metering range: 1500mL (maximum)
The maximum packaging film width is 400mm
The film thickness : 0.04-0.09mm
Gas consumption: 0.8 Mps 0.6m3/min
Total power/voltage: 3.2kW 220V 50HZ
Dimensions: L1450mm*W1150mm*H1400mm
The weight: 520kg
Electrical parts:
| NO. | NAME | | BRAND | FUNCATION | |
| 1 | Servo motor | CHINA | INOVANCE | PULLING | |
| 2 | Temp control | Korea | Autonics | Temp control | |
| 3 | GPG motor | CHINA | TAIBANG | Transport control | |
| 4 | PLC | CHINA | INOVANCE | Program control | |
| 5 | Touch screen | CHINA | INOVANCE | | |
| 6 | Sensor | CHINA | BDL | BAG CHECK | |
Medium-sales Services:
CORETAMP have the trained team to follow your orders methodically
to guarantee the products can be finished on time with high
quality.
After-Sales Service:
1.Installing service
we will send our engineer to your factory if you need.
you need to afford the round trip flight ticket and cost which
happen at your place and engineer fee 100USD/DAY.
2.Training services:
Our engineer will train your workers to install machine ,how to use
machine and basic skills to fix machines.
3.Trouble shooting service:
We will solve problems by phone ,video.If need to change spare
parts,We will send spare parts to fix.
if still can't fix problems,Then we send engineer to come.
In guarantee period, if spare part broken, we will send you the
parts free and we will pay the express fee. when machine is out of
guarantee period, we will provide you the spare parts in cost price
